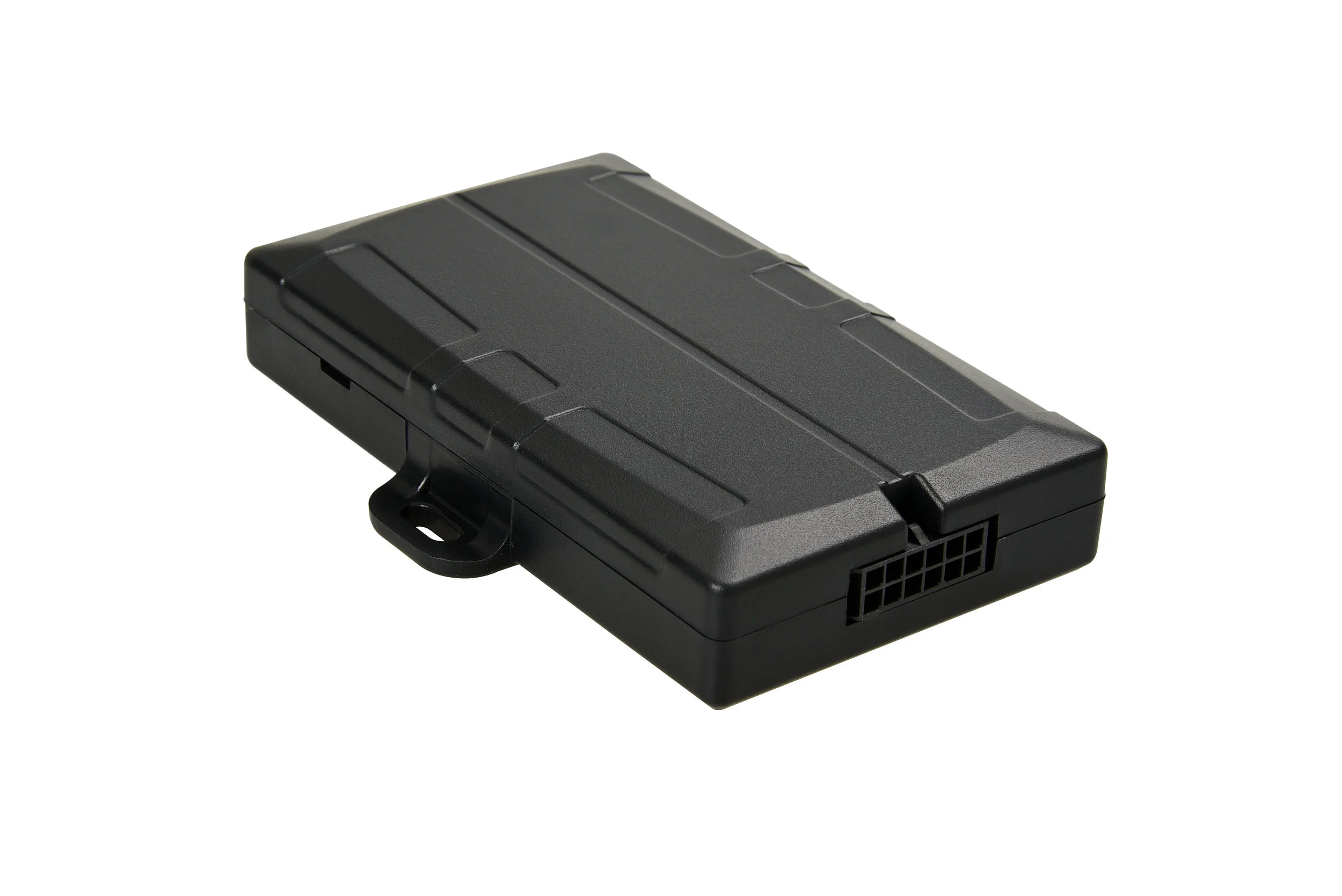

KD-4 Low Cost, Reliable Cellular GPS Tracker

The KD-4 is a compact cellular 4G tracking device with a variety of inputs and outputs to cater for entry-level tracking applications, without sacrificing tracking and communications performance and reliability. Its compact housing contains the GPS and cellular antennas, and the 12-wire connector means that all of the KD-4’s functionality can be easily accessed - and makes installation a breeze.

The internal backup battery provides alerts and tracking operations even when external power is removed. The 3D accelerometer and flash memory round out a product that is low cost but still packs a punch. The KD-4 can simultaneously use GPS and GLONASS satellites, providing double the number of positioning satellites than standard tracking products. The result is faster acquisition and more accurate and reliable tracking.

  • Affordable and reliable, with excellent performance.

  • Concurrent GPS and GLONASS tracking, with amplified signals

  • Easy install & easy to conceal

  • Compact Cellular 4G

  • Variety of inputs and outputs


TRACKbox TB2 CAT-M1


The TRACKbox ™ TB2 CAT-M1 is a high quality, simple to integrate, Vehicle Tracking device.

Simply connect to the vehicle OBDII port for a complete installation, or a standard (3 wire) installation (power/earth/ignition sense) to monitor ignition on/off, engine hours, odometer and location.

Hi resolution driver behavior / TruePath data

Garmin integration for two way messaging

RCM (Aust & NZ) Approval

Reasons to poll I/O configuration

  • Ignition on/off 1. 1-wire (temperature coming soon)

  • PTO/Aux on/off 2. Vehicle lock

  • Alarm activation 3. Ignition sense

  • Panic/SOS activation 4. Alarm sense

  • Input voltage low 5. Ground

  • Internal battery low 6. Power (6-42VDC)

  • TruePath Tracking 7. CANbus

    8. CANbus

    9. RS232TXD

    10. RS232RXD

    11. Aux/PTO sense or Panic/SOS

    12. Unlock or Starter disable

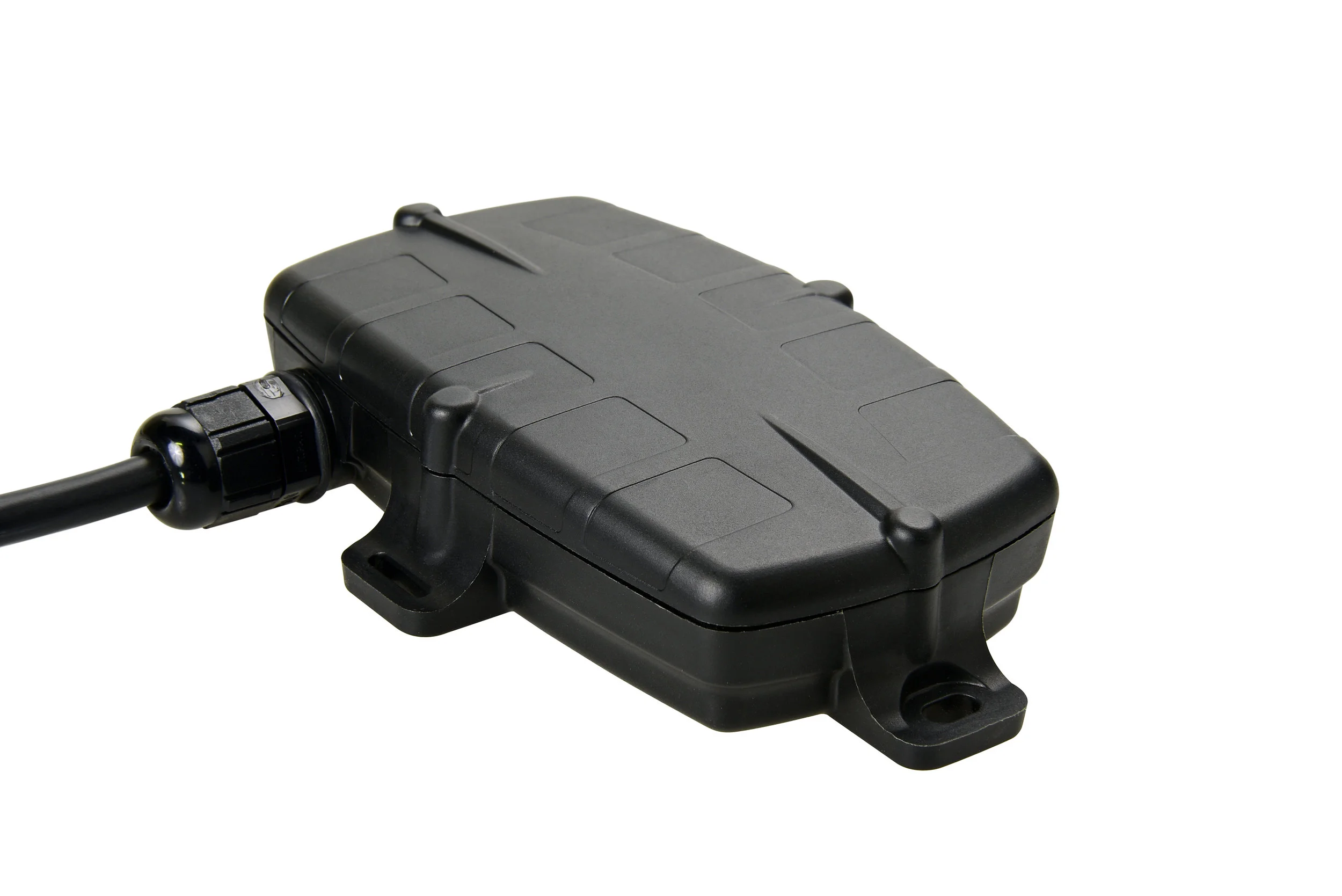

KG62-4G Compact IP67 Rated GPS Tracker

The KG60 - 4 is a compact 4G GPS tracking device with a variety of inputs and outputs to cater for the most demanding applications. Its rugged housing is IP67 rated to withstand the harshest environments, without sacrificing tracking and communications performance. With the internal GPS and cellular antennas installation is a breeze. The internal backup battery provides alerts and tracking operations even when external power is removed.

Available in two harness types:
- 12-wire harness, which exposes the 3 x Digital Inputs, 3 x Switched Ground Outputs and RS232 interface.
- 3-wire harness, Power, Ground, and Ignition wires for super-simple, foolproof installation.

  • Rugged weather proof housing IP67

  • Easy install & easy to conceal

  • Superior design and performance

  • Compact 4G GPS Tracker

  • Variety of inputs and outputs

  • Great for equipment location and run hours
